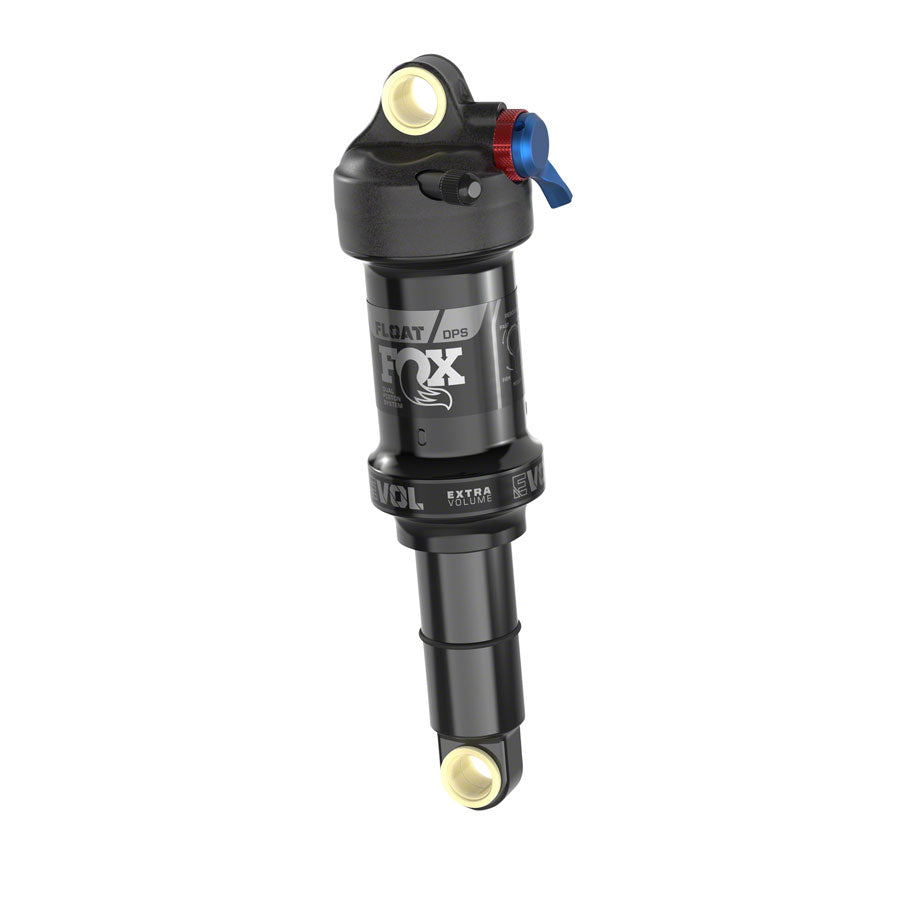

FOX FLOAT DPS Performance Rear Shock

For a lightweight inline shock the FLOAT DPS packs a lot of performance. The Dual Piston Base Valve has dedicated compression and rebound pistons providing a firm lockout without compromising bump compliance ride control or efficiency.

Black anodized air sleeve and body

Lightweight one-piece EVOL air sleeve improves responsiveness and sensitivity

Dual Piston System (DPS) damper valve design improves both rebound and compression flow

Performance Series black-on-black graphics package

Stroke (mm)	2.25, 38, 44, 51
Stroke (ins)	1.5, 1.75, 2, 57
Metric	No
Lockout Switch	Shock Mounted Switch
Eyelet Diameter (mm)	12.7
External Adjustments	Rebound Damping
Positive Spring	Air
Eye to eye length (mm)	165, 184, 190, 200
Eye to eye length (ins)	6.5, 7.25, 7.5, 7.875
