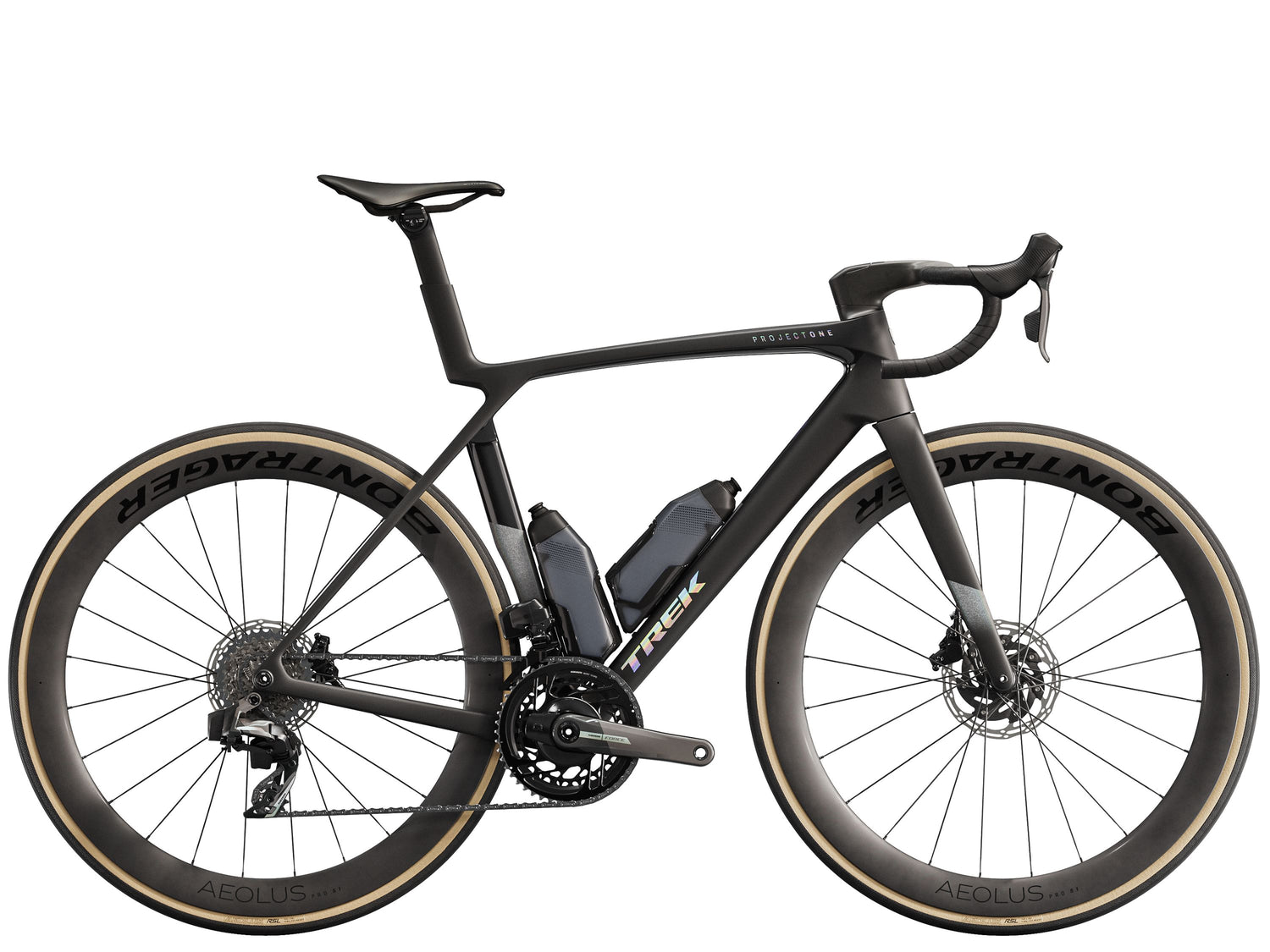

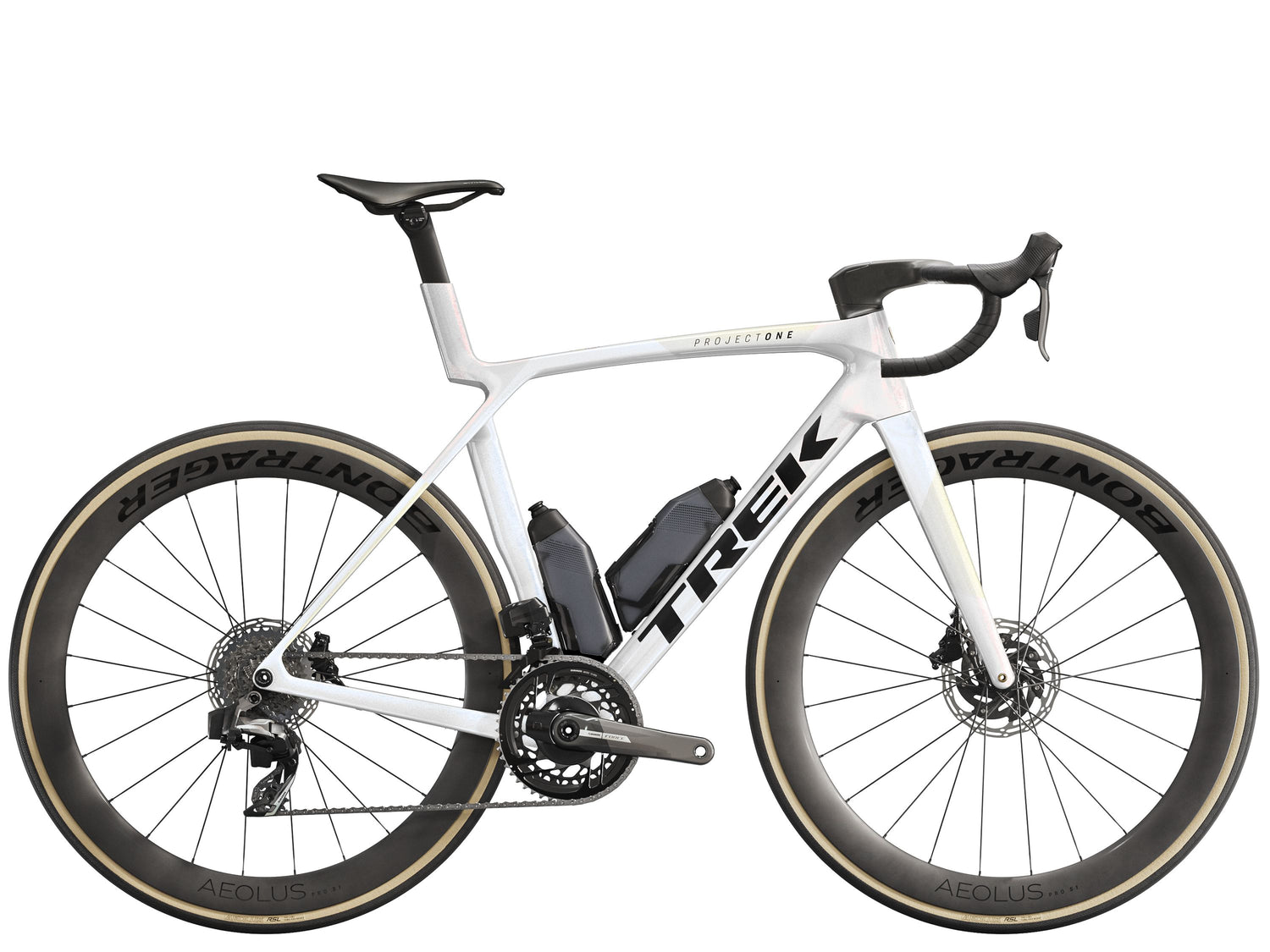

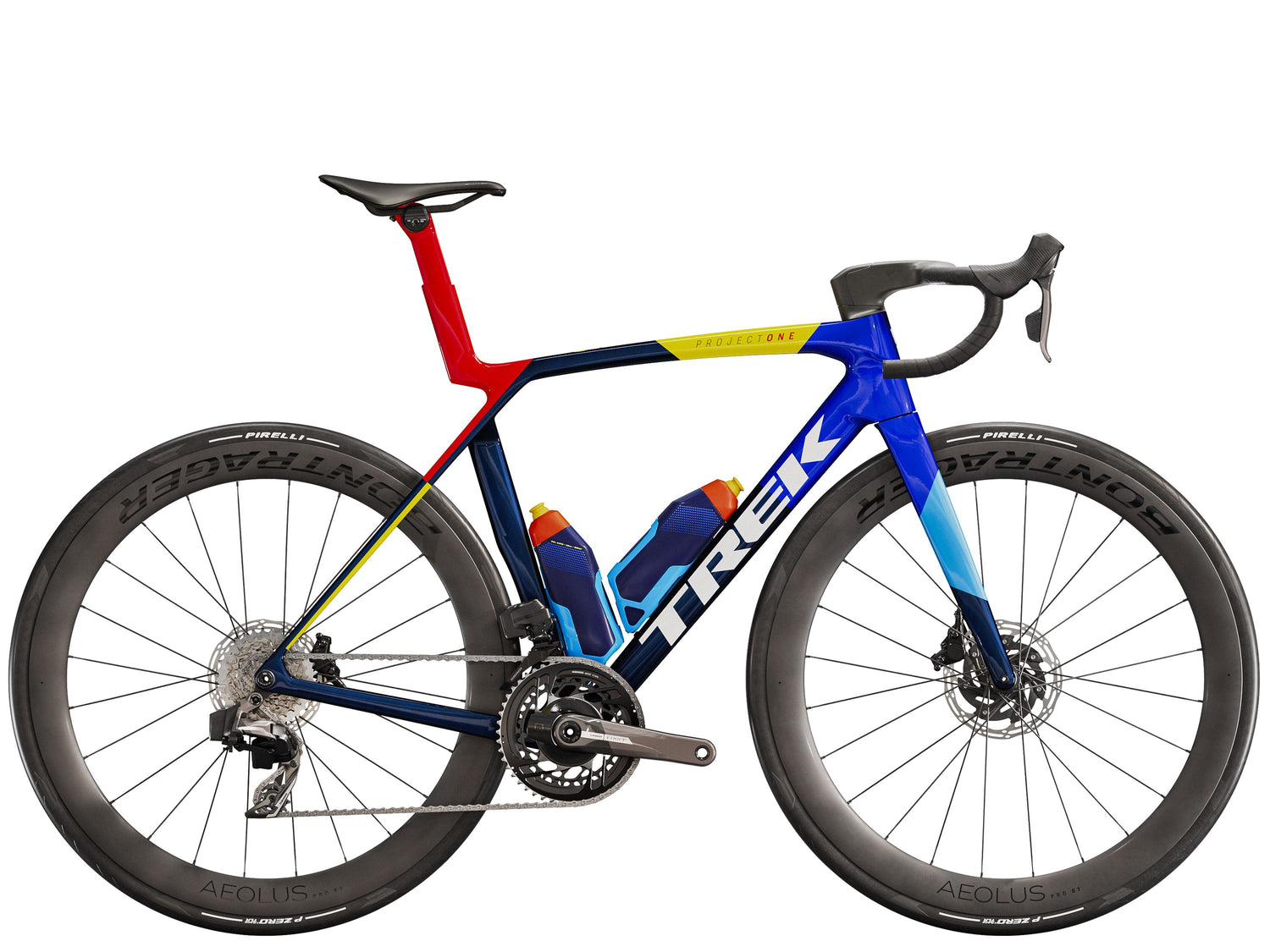

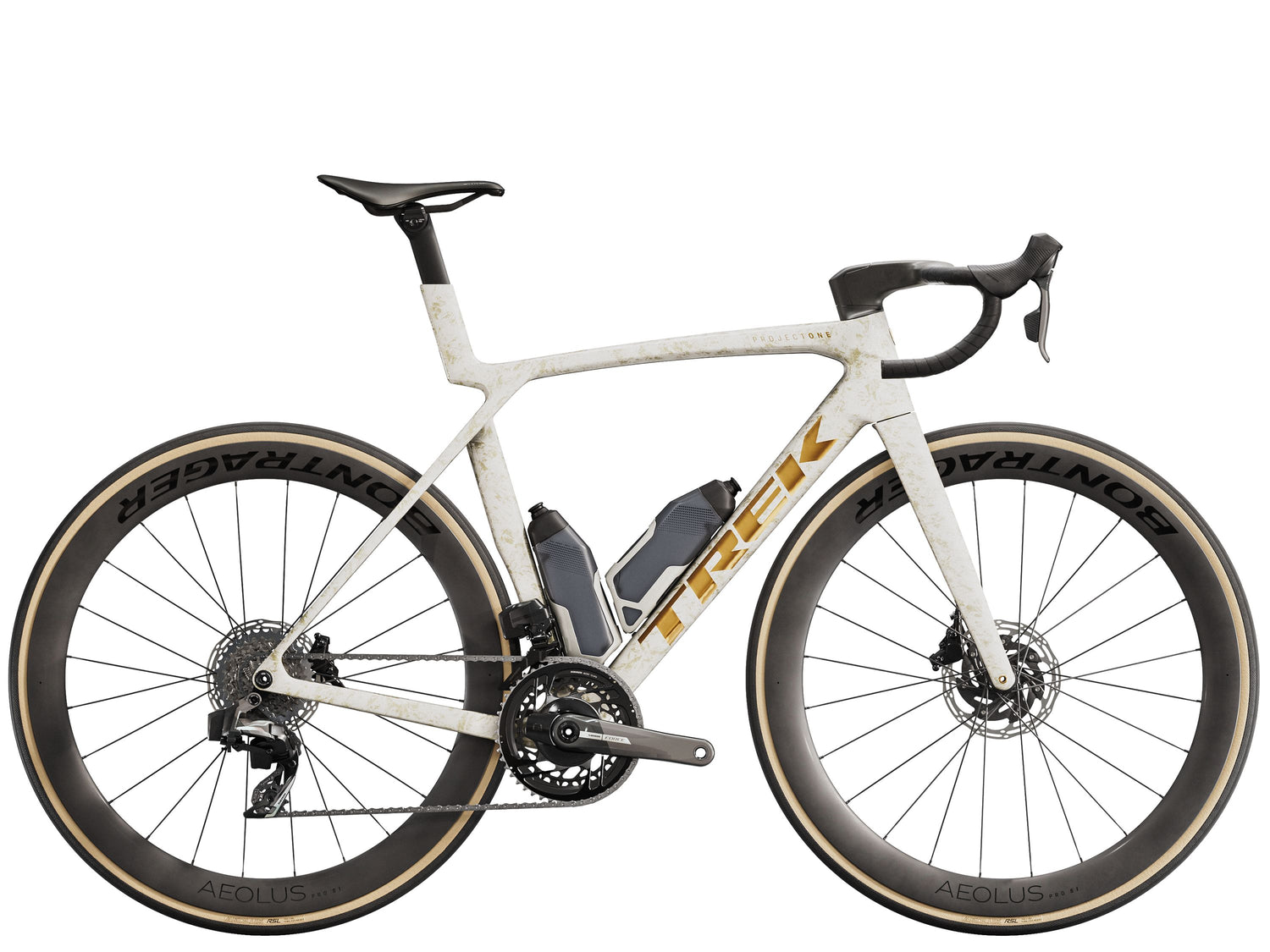

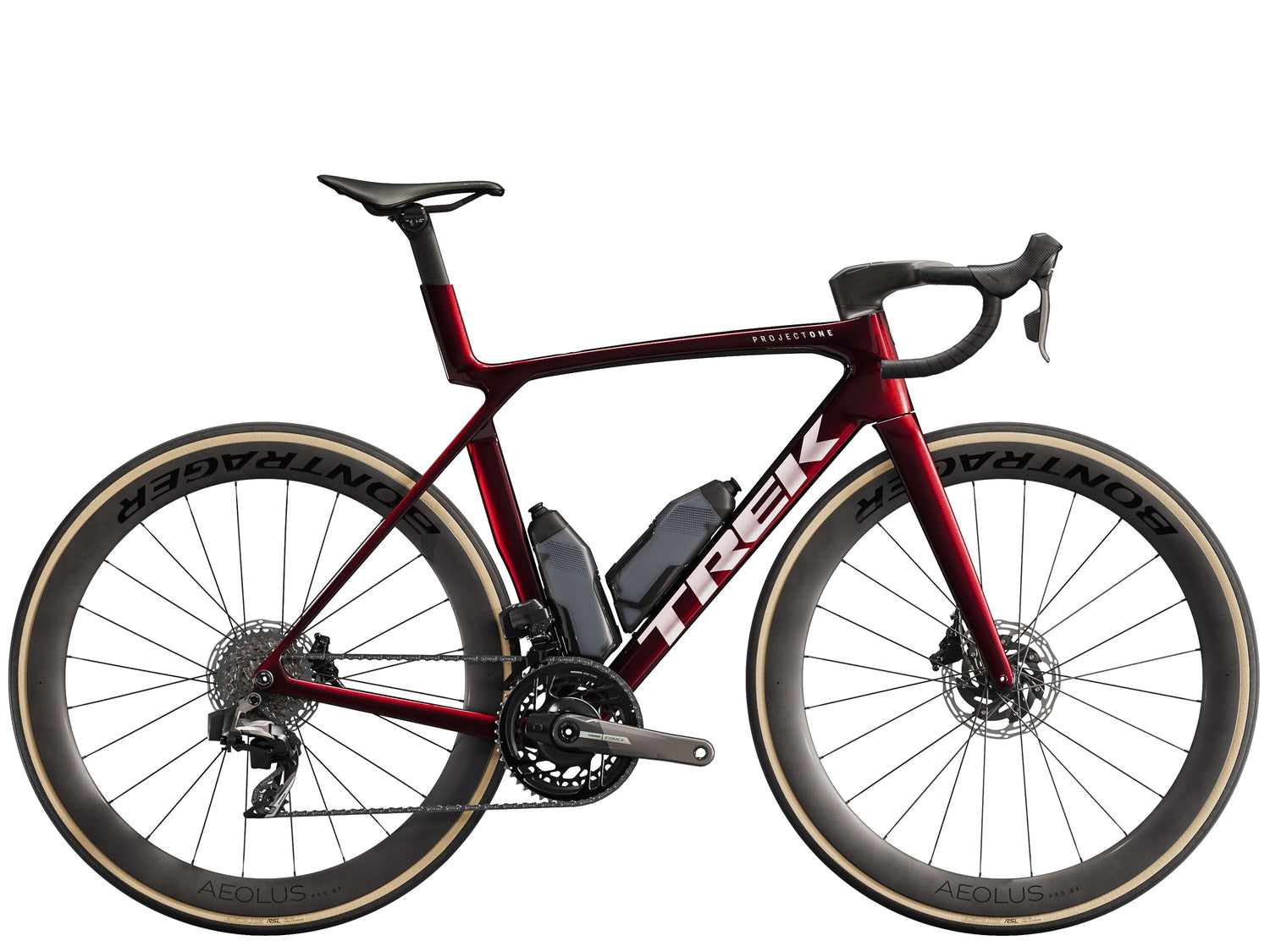

Trek Madone SLR 7 AXS Gen 8
Trek Madone SLR 7 AXS Gen 8 - MATTE CARBON SMOKE/PRISMATIC PEARL / XS is backordered and will ship as soon as it is back in stock.
Description
- Revolutionary Full System Foil aero tube shapes redefine what fast looks like and help optimize aerodynamics around the whole bike
- It's crafted from our highest-level 900 Series OCLV carbon that's mind-bogglingly light, stiff where you need the power, and compliant where you crave comfort
- Carbon wheels keep weight down and performance up, so you can crush climbs and soar down descents
- You get clean, wireless shifting that's ultra-precise and programmable, thanks to SRAM Force AXS D2 and a power meter for watching your output and getting the most from training
- RSL Aero Bottles and Cages make the whole rider system faster to give you even more aerodynamic gains
- New Blendr system on bar/stem makes it easy to add and remove a daytime running light
Our lightest Madone Disc ever
New light and fast aero tube shaping paired with our best 900 Series OCLV Carbon makes Gen 8 our lightest Madone Disc f/s ever and as light as the Émonda f/s.
Redefines what fast looks like
Revolutionary new Full System Foil aero tube shapes improve airflow over the whole bike while maintaining the lightness climbers crave. Plus, the bike’s entire rider system was meticulously designed and rigorously tested to be faster everywhere.
80% more vertically compliant IsoFlow
We refined our race-focused comfort tech to be lighter and have nearly double the vertical compliance so you can ride stronger longer.
Designed for the world’s best
Madone SLR Gen 8 is raced and loved by Lidl-Trek's fastest sprinters and climbers and the only bike they need for race day.
One-piece Aero RSL bar/stem
A new one-piece bar/stem is lighter, more aeryodynamic, and more ergonomic than the previous version. Plus, the hoods are 3cm narrower than the drops so you can adjust your positioning to prioritize aerodynamics (in the hoods) or power (in the drops).
RSL Aero Bottles and Cages
Included RSL Aero Bottles and Cages were specifically designed along with the whole rider system to help make Madone even faster.
| Fork | Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle |
| Wheel Front | Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle |
| Wheel Rear | Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12mm thru axle |
| Tire | Pirelli P Zero Race, 120 tpi, tubeless compatible, 700x28mm |
| Tire Part | Bontrager TLR sealant, 6oz |
| Skewer Front | Bontrager Switch chamfered thru axle, removable lever |
| Skewer Rear | Bontrager Switch chamfered thru axle, removable lever |
| Shifter | SRAM Force AXS D2, 12 speed // SRAM Force AXS D2, 12 speed |
| Front Derailleur | SRAM Force AXS D2, braze-on |
| Rear Derailleur | SRAM Force AXS D2, 36T max cog |
| Crank | SRAM Force AXS D2, power meter, 48/35, DUB, 165mm length |
| Bottom Bracket | SRAM DUB, T47 threaded, internal bearing |
| Cassette | SRAM Force XG-1270, 10-33, 12 speed |
| Chain | SRAM Force, 12 speed |
| Brake Rotor | SRAM CenterLine X, centerlock, round edge, 160mm |
| Saddle | Bontrager Aeolus P2 Pro, carbon rails, 155mm width |
| Seatpost | Madone aero carbon seatpost, 0mm offset, short length |
| Handlebar | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 35cm control width, 38cm drop width, 80mm stem length |
| Battery | SRAM eTap battery pack (with charger) |
Geometry Chart
| B B Drop | 7.2 |
| Chainstay Length | 41 |
| Eff Top Tube | 51.7 |
| Frame Reach | 37 |
| Frame Size Letter | XS |
| Frame Stack | 50.7 |
| Head Angle | 71.6° |
| Head Tube Length | 10 |
| Offset | 5 |
| Saddle Rail Height Max Short | 61.2 |
| Saddle Rail Height Max Tall | 65.4 |
| Saddle Rail Height Min Short | 54.9 |
| Saddle Rail Height Min Tall | 59.2 |
| Seat Tube | 40.4 |
| Seat Tube Angle | 73.8° |
| Standover | 70.4 |
| Trail | 6.1 |
| Wheelbase | 97.1 |
| Wheel Size | 700c |
